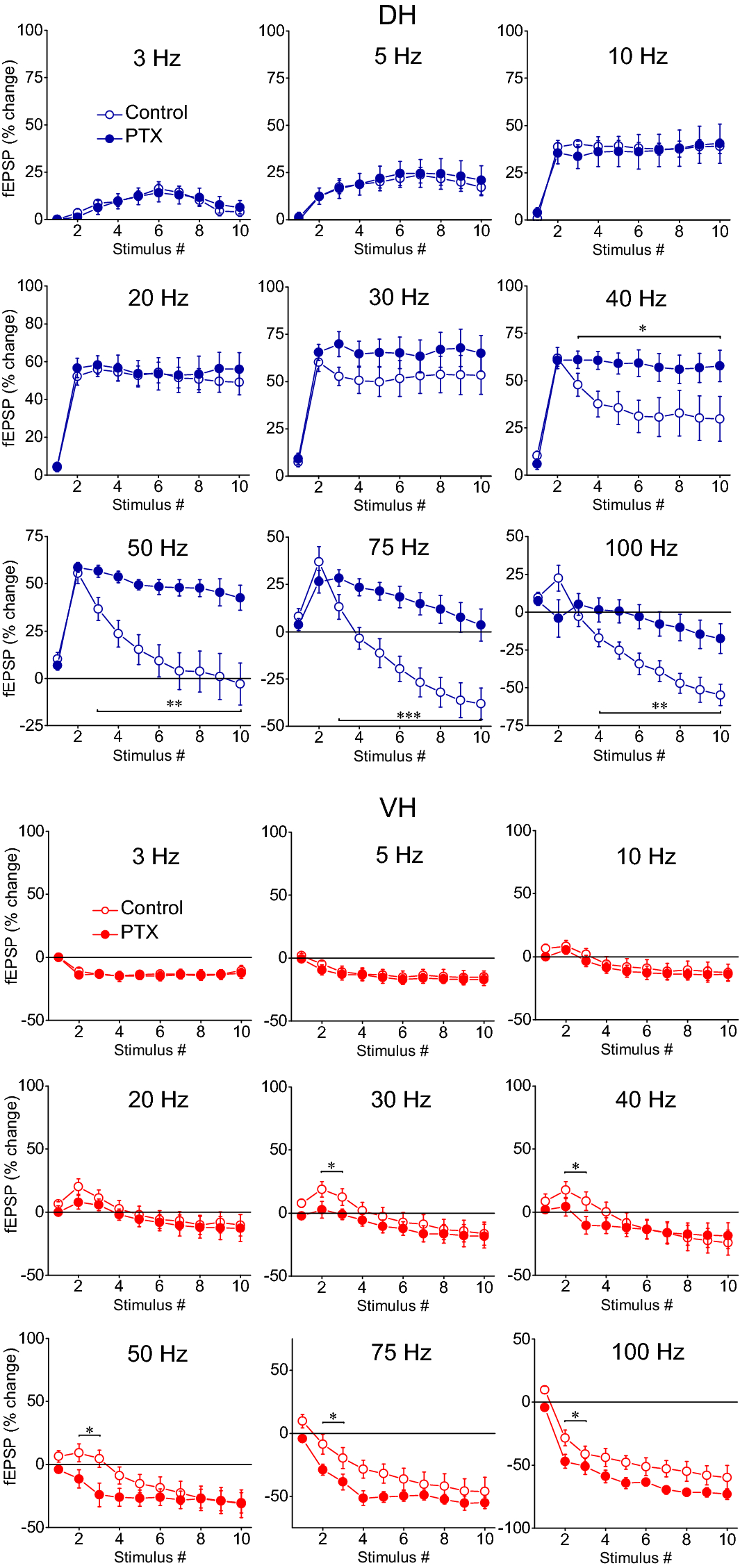

Fig. 9
GABAA receptor-mediated inhibition strongly modulates short-term synaptic plasticity in the DH but not in the VH. Short-term changes in fEPSP are shown for stimulation frequencies ranging from 3 to 100 Hz and they are plotted as a function of stimulus number. Stimulation current intensity was tuned to evoke suprathreshold fEPSP that produced a PS of 0.5–1 mV (see Fig. 8). Data were obtained from (slices/rats): 6/3 in DH and 6/5 in VH. Horizontal bars show the stimulation epoch in which significant drug effects were observed (paired t-test of individual responses along the train between experimental conditions). Asterisks denote the level of significance: *p < 0.05, **p < 0.01, ***p < 0.005
